Plain Gauges
High-precision plain gauges for accurate dimensional measurement. Our plain gauges are manufactured to the highest standards using premium materials and advanced manufacturing techniques.
What are Plain Gauges?
Plain gauges are precision measuring instruments used to verify the dimensional accuracy of cylindrical features such as holes, shafts, and bores. They are essential tools in manufacturing quality control, providing quick and reliable pass/fail inspection without the need for complex measuring equipment.
At DSN Enterprises, we manufacture a comprehensive range of plain gauges including plug gauges, ring gauges, setting masters, and snap gauges. All our gauges are manufactured using premium grade materials and undergo rigorous quality checks to ensure accuracy and longevity.
Our Plain Gauge Products
Explore our complete range of high-precision plain gauges designed for various industrial applications.

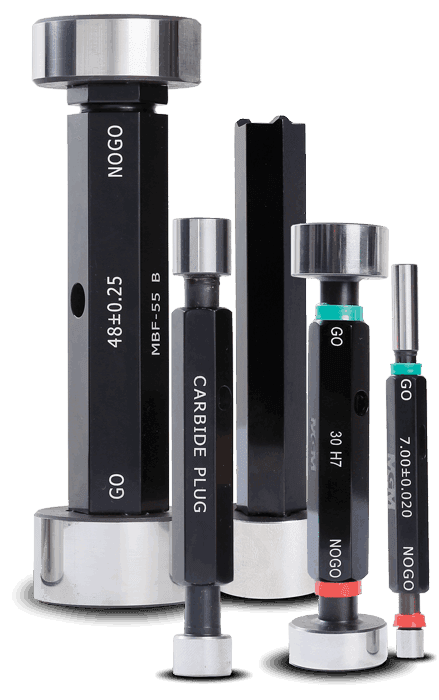

Plain Plug Gauge
1mm to 250mm - OHNS (W) & Carbide
Precision plug gauges designed for accurate internal diameter measurement of holes and bores. Available in GO and NO-GO configurations for quick pass/fail inspection.
Key Features:
- High-precision cylindrical design
- GO and NO-GO configuration
- Available in OHNS and Carbide materials
- Sub-zero treated for dimensional stability
- Hardness: 60 ± 2 HRC
Applications:

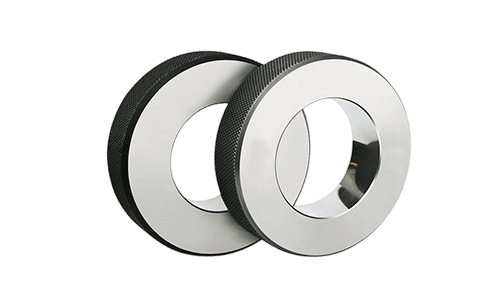

Plain Ring Gauge
6mm to 125mm
Precision ring gauges for accurate external diameter measurement of shafts and pins. Essential tools for quality control in manufacturing processes.
Key Features:
- Precision ground internal diameter
- GO and NO-GO configuration
- Wear-resistant surface finish
- Sub-zero treated at -80°C
- NABL calibration available
Applications:
Cylindrical Setting Masters
6mm to 250mm
High-precision master setting gauges used for calibrating measuring instruments and comparators. Essential reference standards for quality laboratories.
Key Features:
- Ultra-high precision manufacturing
- Calibrated to traceable standards
- Mirror finish surface
- Supplied with calibration certificate
- Temperature stable materials
Applications:
Cylindrical Measuring Pin
1mm to 20mm
Precision measuring pins for accurate dimensional measurement and inspection. Ideal for thread measurement, groove inspection, and precision layout work.
Key Features:
- High cylindricity accuracy
- Precision ground finish
- Available in sets
- Carbide option for extended life
- Individual calibration available
Applications:

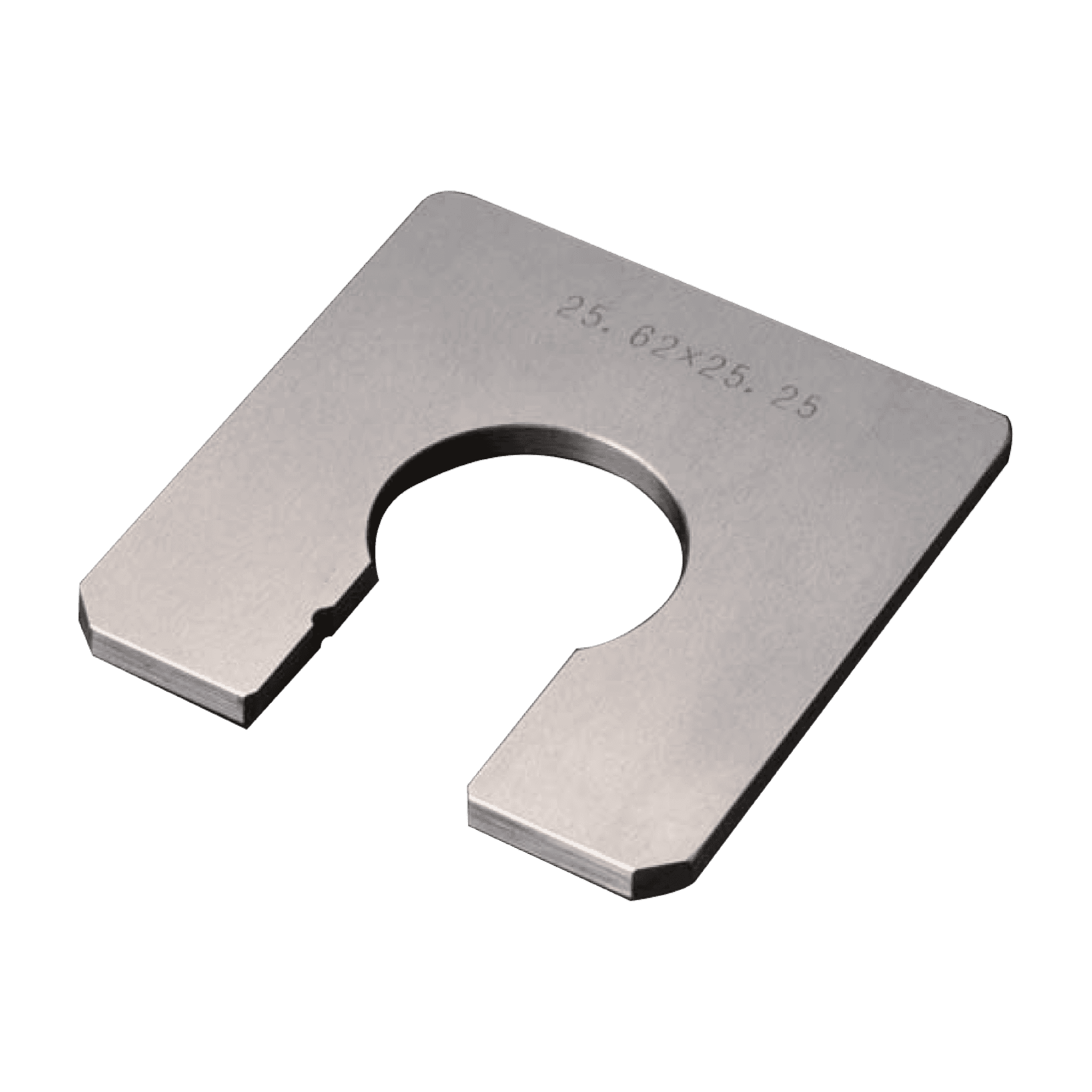

Snap Gauges
Various sizes available
Quick-action gauges for rapid external dimension measurement. Designed for high-volume production inspection with easy pass/fail determination.
Key Features:
- Rapid measurement capability
- Adjustable and fixed types
- Ergonomic handle design
- Wear-resistant anvils
- Easy GO/NO-GO identification
Applications:
Technical Specifications
General Specifications
| Material | OHNS (W) / Tungsten Carbide |
| Hardness | 60 ± 2 HRC |
| Treatment | Sub-Zero at -80°C |
| Surface Finish | Mirror / Ground Finish |
| Tolerance Class | As per IS / ISO Standards |
| Certification | NABL Certificate Available |
Quality Standards
- •IS 919 (Part 1, Part 2) 1993 - ISO System of Limits & Fits
- •IS 3455 - Gauging Practice for Plain Work Pieces
- •IS 6244-1980 - Plain Plug Gauges (40mm to 120mm)
- •IS 6137-1983 - Plain Plug Gauges (1mm to 40mm)
- •IS 3485 - Plain & Master Setting Ring Gauges (1mm to 315mm)
- •IS 8023 - Single Ended Progressive Type Plate Snap Gauges
Need Plain Gauges?
Contact our team for custom sizes, bulk orders, or technical assistance. We offer competitive pricing and fast delivery.
